Lithium polymer Battery Cell 602030 3.7V 300mAh Rechargeable Lipo Li-polymer Battery For Wareable Device

Name: Lithium polymer Battery Cell 602030 37V 300mAh Rechargeable Lipo Lipolymer Battery For Wareable Device
Brand: RESKY
Price: 1 USD

China Lithium polymer Battery Cell 602030 3.7V 300mAh Rechargeable Lipo Li-polymer Battery For Wareable Device wholesale

Brand Name : RESKY

Model Number : LP602030

Certification : CE, RoHS, MSDS, Un38.3

Place of Origin : China

MOQ : 10pcs

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 50000pcs/dat

Delivery Time : 7-10days

Packaging Details : Paper box

Model NO. : LP602030

Capacity : 300mAh

MOQ : 10PCS

Electrolyte : Li(Nicomn)O2

Cycle Life : 500cycles

Warranty : 12months

Shipping : UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line

Lead Time : Within 3-10 Workdays

Connector : Jst, Molex....

Specification : 6*20*30mm

Contact Now

Product Description

Lithium polymer Battery Cell 602030 3.7V 300mAh Rechargeable Lipo Li-polymer Battery For Wareable Device

NO.	Items	Specifications
1	batteries	3.7v 300mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	300mAh 0.2C Discharge
5	Charge current	Standard Charging:0.2C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	0.5C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length:30±0.5mm (not including tabs) Width:20±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥800times

Advantages:

‌High Energy Density‌: Utilizing a ternary material system, it offers a high discharge platform (average voltage exceeding 3.7V), low internal resistance (≤200mΩ), and supports a 1C discharge rate, meeting the demands of high-load devices. ‌

‌Long Cycle Life‌: Over 500 cycles, with over 80% capacity retention after charge and discharge. ‌

‌Wide Temperature Range‌: Stable operation in environments ranging from -20°C to 60°C, adapting to a wide range of temperature fluctuations. ‌

‌Safety Features‌: Aluminum-plastic film flexible packaging structure offers low leakage, and a built-in protection board provides protection against short circuits, overcharge/discharge, and high temperatures. ‌

‌Fast Charge and Discharge‌: Supports 0.5C to 1C fast charging, with a standard charge current of up to 1A, for high charging efficiency. ‌

Typical Application:
‌Consumer Electronics‌: Bluetooth charging cases, wireless mice, smartwatches, electronic toys, and other devices requiring a compact, high-endurance design. ‌

‌Industrial Equipment‌: Dashcams, industrial instruments, and other applications requiring high-temperature resistance and lightweight design. ‌

‌Portable Devices‌: LED lamps, beauty devices, and other products requiring high volume and portability.

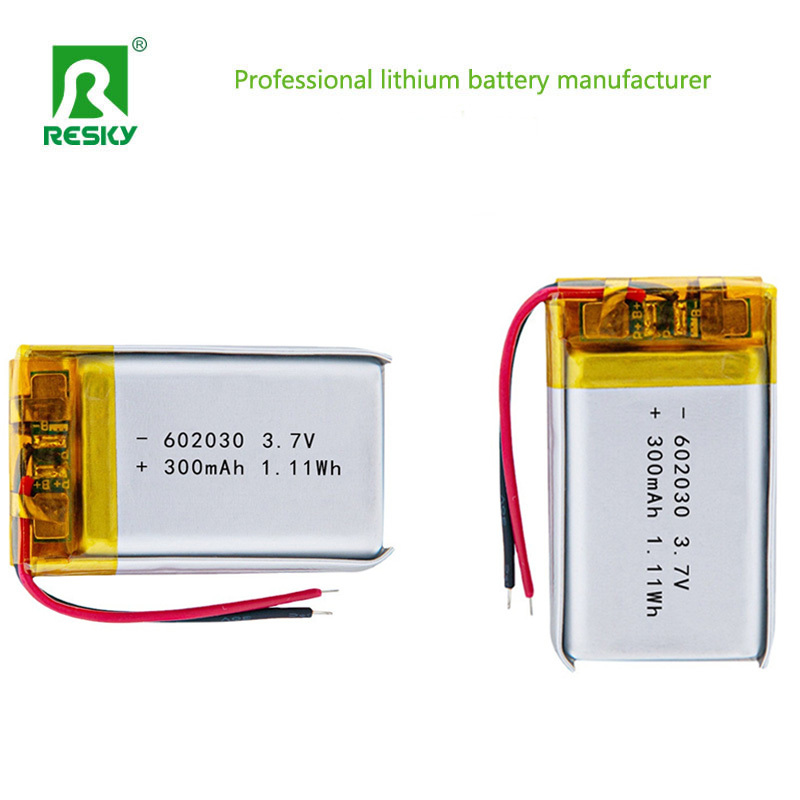

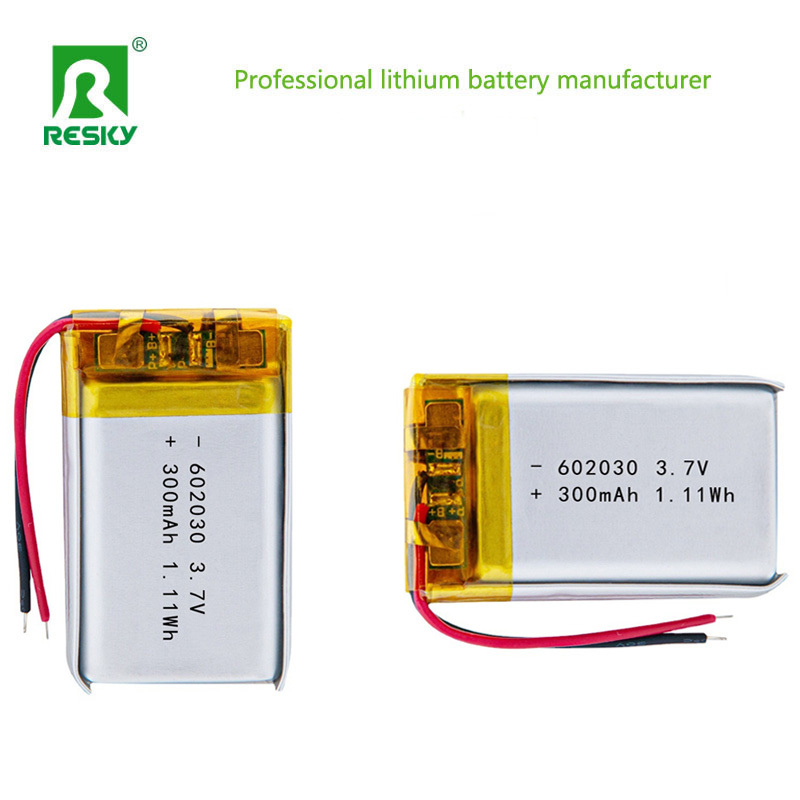

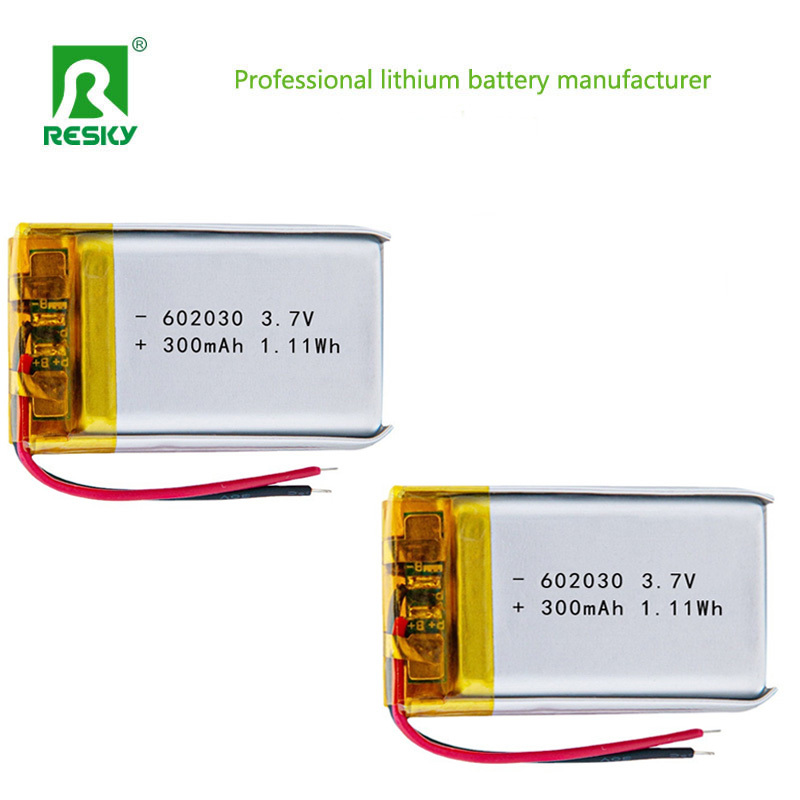

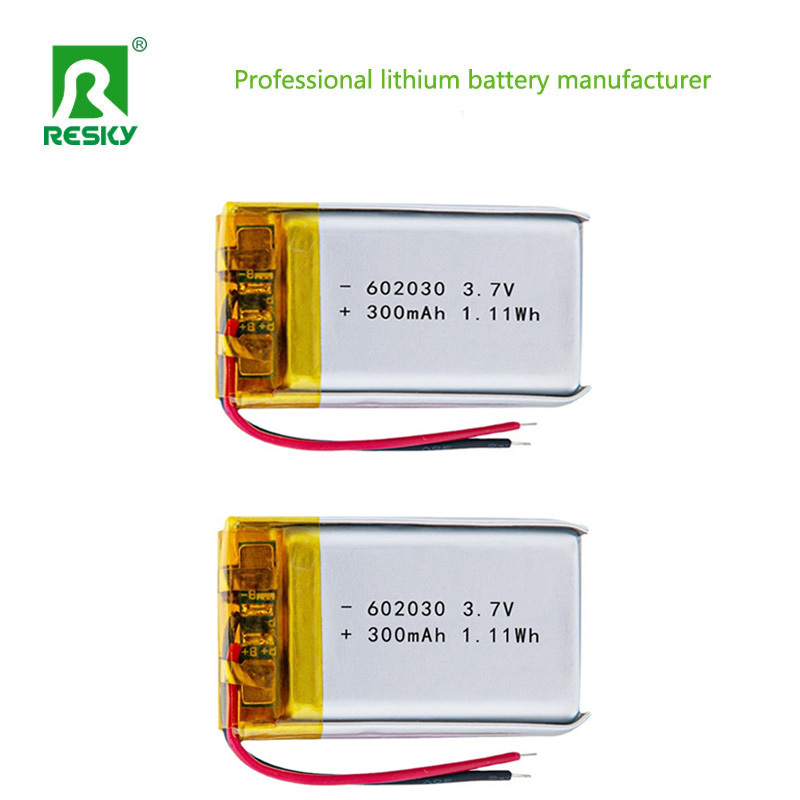

Picures:

Lithium polymer Battery Cell 602030 3.7V 300mAh Rechargeable Lipo Li-polymer Battery For Wareable Device
